Reinier Claeszen 1894
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Reinier Claeszen | Rijkwerf Amsterdam | 24.9.1890 | 21.11.1891 | 1.3.1894 | stricken 4.1914 |
|
Displacement normal, t |
2440 |
|
Displacement full, t |
|
|
Length, m |
70.0 |
|
Breadth, m |
13.5 |
|
Draught, m |
4.55 max |
|
No of shafts |
2 |
|
Machinery |
2 VC, 3 Scottish boilers |
|
Power, h. p. |
2315 |
|
Max speed, kts |
12.5 |
|
Fuel, t |
coal 96 |
|
Endurance, nm(kts) |
760(10) |
|
Armour, mm |
compound; belt: 120 - 100, deck: 75 - 50, turret: 280, CT: 280 |
|
Armament |
1 x 1 - 209/32 Krupp No.1, 1 x 1 - 173/32 Krupp No.2, 4 x 1 - 50/37 Krupp, 2 - 356 TT (bow?) |
|
Complement |
161 |

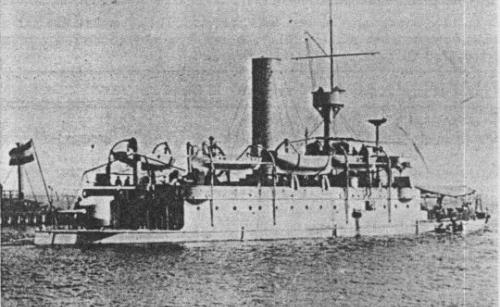

Project history: A low freeboard monitor with an amidships superstructure, the 21cm gun in a turret forward and the 17cm aft in a shield.
Ship protection: Armoured 120-100mm belt protected full ship length and was closed by 75-50mm deck. Turret had 280mm sides.
Modernizations: None.
Naval service: No significant events.
