Cerberus 1870
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Bloedhond | Rijkswerf Amsterdam | 1867 | 1869 | 1870 | sold 1907 | ||
| Cerberus | Rijkswerf Amsterdam | 1867 | 1869 | 1870 | stricken 1905 |
|
Displacement normal, t |
Bloedhond: 1656 Cerberus: 1559 |
|
Displacement full, t |
|
|
Length, m |
Bloedhond: 55.7 Cerberus: 56.5 |
|
Breadth, m |
Bloedhond: 14.2 Cerberus: 13.4 |
|
Draught, m |
Bloedhond: 3.15 max Cerberus: 3.00 max |
|
No of shafts |
2 |
|
Machinery |
2 HRCR, 4 rectangular boilers |
|
Power, h. p. |
Bloedhond: 680 Cerberus: 534 |
|
Max speed, kts |
Bloedhond: 7.7 Cerberus: 7 |
|
Fuel, t |
Bloedhond: coal 128 Cerberus: coal 98 |
|
Endurance, nm(kts) |
700(7) |
|
Armour, mm |
iron; side: 140, deck: 25, turret: 285 - 203, CT: 140 |
|
Armament |
1 x 2 - 229/14 Armstrong 12.5-ton MLR |
|
Complement |
117 |
Project history: Low freeboard monitors without ram bows, and with narrow fore and aft superstructures.
Ship protection: Armoured 140mm belt protected full ship length. Turret had 285-203mm sides.
Modernizations: 1882, Cerberus; 1883, Bloedhond: - 1 x 2 - 229/14; + 1 x 1 - 283/20 Krupp No.1, 2 x 1 - 37/20 Hotchkiss, 2 x 5 - 37/17 Hotchkiss
Naval service: No significant events.

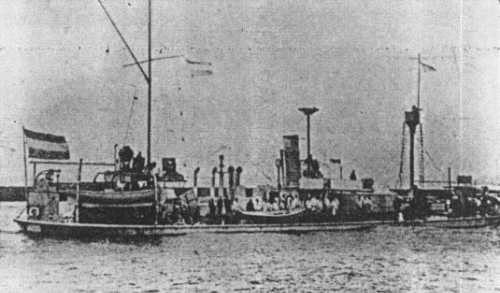

Bloedhond
