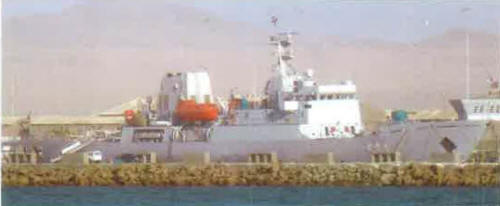

Elephant 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Elephant | S11 | Wuchang, Wuhan, China | 27.1.2011 | 12.2011 | 7.9.2012 | in service (2020) |
|
Displacement standard, t |
|
|
Displacement full, t |
2580 |
|
Length, m |
97.0 pp 108.0 oa |
|
Breadth, m |
14.0 |
|
Draught, m |
4.50 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar C280-16 diesels |
|
Power, h. p. |
12510 |
|
Max speed, kts |
22 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
6000 |
|
Armament |
1 x 1 - 37/63 type 76 modified, 2 x 2 - 14.5/93, helicopter deck |
|
Electronic equipment |
Furuno 2137S, Furuno 2127, type 347G1 radars |
|
Complement |
60 + 90 passengers |
Project history: Used for patrol duties, training and as cargo\personnel transport, able to accommodate 90 students or troops, As alternative can carry 6 armoured vehicles and 6 modular containers on deck.
Modernizations: None.
Naval service: No significant events.
Elephant 2012
