Names |
20 Möwe Bay 21 Terrace Bay |
|
Builders |
INACE, Fortaleza, Ceará, Brazil: 20, 21 |
|
Completed |
2011: 20, 21 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2020): 20, 21 |
|
Displacement standard, t |
40 |
|
Displacement full, t |
48 |
|
Length, m |
20.0 pp 22.8 oa |
|
Breadth, m |
5.50 |
|
Draught, m |
1.17 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V396 TB93 diesels |
|
Power, h. p. |
3000 |
|
Max speed, kts |
27 |
|
Fuel, t |
diesel oil 6.5 |
|
Endurance, nm(kts) |
840(18) |
|
Armament |
3 x 1 - 7.6/90 |
|
Electronic equipment |
radar |
|
Complement |
10 |
Project history: Brazilian Marlim class. GRP construction.
Modernizations: None.
Naval service: No significant events.

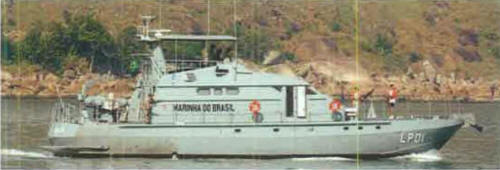

Brazilian sister 2007
© Ivan Gogin, 2020
