| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| တပင်ရွှေထီး [Tabinshweti] | 773 | China // Sinmalaik, Yangon | 11/2014 | 12.2016 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
1200 |
|
Length, m |
79.0 |
|
Breadth, m |
|
|
Draught, m |
|
|
No of shafts |
2 |
|
Machinery |
2 MAN-Pielstick 16PA6 diesels |
|
Power, h. p. |
14100 |
|
Max speed, kts |
~30 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
2 x 2 C-802 SSM (4 YJ-83), 1 x 1 - 76/62 OTO-Melara Compact SR (North Korean version), 1 x 6 - 30/54 NG-18, 2 x 1 - 14.5/89, 1 helicopter (Z-9) |
|
Electronic equipment |
air search, surface search, 2x nav., type 347 radars, FLIR e/o system, 2x ECM suites |
|
Complement |
Project history: Enlarged Anawratha with helicopter hangar and stealth architecture.
Modernizations: None.
Naval service: No significant events.

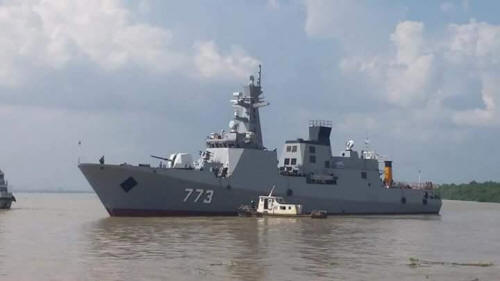

Tabinshweti 2016
