MYANMAR NAVY (MYANMAR)

ESCORTS

INDAW offshore patrol vessels (1980-1982)

Name No Yard No Builder Laid down Launched Comp Fate
အင်းတော် [Indaw] 55   Danyard AS, Frederikshavn, Denmark     30.5.1980 in service (2019)
အင်း [Inma] 56   Danyard AS, Frederikshavn, Denmark     12.1981 sunk 1987
အင်းလျား [Inya] 57   Danyard AS, Frederikshavn, Denmark     25.3.1982 in service (2019)



Displacement standard, t

385

Displacement full, t

506

Length, m

45.8 pp 50.0 oa

Breadth, m

10.5

Draught, m

2.75

No of shafts

2

Machinery

2 Burmeister & Wain 16V23L-VO diesels

Power, h. p.

4600

Max speed, kts

20

Fuel, t

diesel oil

Endurance, nm(kts) 4500(16)

Armament

55: 1 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 20/70 Mk 10, 1 helicopter (light)

56, 57: 1 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 20/70 Mk 10, helicopter deck

Electronic equipment

radar

Complement

20

Project history: Ordered in Denmark in 1978, identical with Danish Havørnen. Mercantile design of helicopter-carrying small fishery protection vessel. Carry a David Still 25kt boarding boat in an inclined ramp at the stern. Sailed by the navy for the People's Pearl and Fishery Department.

Modernizations: None.

Naval service: Inma sank by unknown reason in 1987.

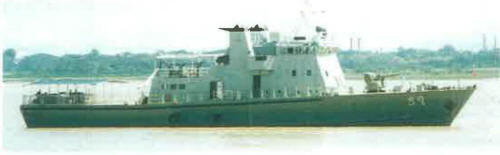

Inya 1980
