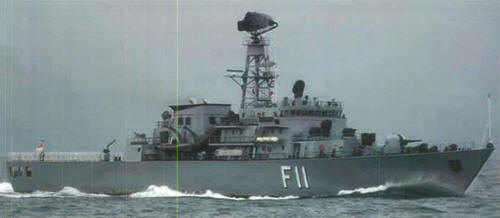

Aung Zeya 2010 (from shipbucket.com)
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| အောင်ဇေယျ [Aung Zeya] | F11 | Sinmalaik, Yangon | 2006 | 2008 | 24.12.2010 | in service (2019) |
|
Displacement standard, t |
2500 |
|
Displacement full, t |
3000 |
|
Length, m |
108.0 |
|
Breadth, m |
13.5 |
|
Draught, m |
3.60 |
|
No of shafts |
2 |
|
Machinery |
4 Shaanxi-MAN 12PA6B STC diesels |
|
Power, h. p. |
30400 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 3800 |
|
Armament |
2 x 4 Kumsong-3 SSM (8 KN-09), 1 x 6 FN-6? SAM (6 FN-6?), 1 x 1 - 76/62 OTO-Melara Compact SR (North Korean version), 4 x 6 -30/54 NG-18, 2 x 6 - 14.5/89, 2 x 3 - 324 TT (Yu-7), 2 x 5 type 81 ASWRL, helicopter deck |
|
Electronic equipment |
RAWL-02 Mk III, 2x Decca RM1290, 2x type 347G radars, HMS-X2 sonar, type 922-1, HZ-100 ECM suites, 2x decoy RL |
|
Complement |
Project history: Assembled in Myanmar with Chinese assistance.
Modernizations: None.
Naval service: No significant events.
Aung Zeya 2013
