MYANMAR NAVY (MYANMAR)

AMPHIBIOUS SHIPS AND CRAFT

SABAN riverine troop transports - gunboats (1960s)

Name No Yard No Builder Laid down Launched Comp. Fate
သဗန္ [Saban]     Rangoon N Yd     1960s in service (2019)
သဂု [Sagu]     Rangoon N Yd     1960s in service (2019)
သေဣန္ဒ​ [Seinda]     Rangoon N Yd     1960s in service (2019)
သေထ္ယ​ [Sethya]     Rangoon N Yd     1960s in service (2019)
သေတ္ယဟတ္ [Setyahat]     Rangoon N Yd     1960s in service (2019)
သ္ဟ္ဝေပဇုန္ [Shwepazun]     Rangoon N Yd     1960s in service (2019)
သ္ဟ္ဝေထိဒ​ [Shwetida]     Rangoon N Yd     1960s in service (2019)
သိန္မိန္ [Sinmin]     Rangoon N Yd     1960s in service (2019)



Displacement standard, t



Displacement full, t

100

Length, m

28.8

Breadth, m

6.70

Draught, m

1.40

No of shafts

1

Machinery

1 Crossley ERL-6 diesel

Power, h. p.

160

Max speed, kts

12

Fuel, t

diesel oil
Endurance, nm(kts)

Armament

1 x 1 - 40/60 Mk 3, (1 - 3) x 1 - 20/70 Mk 10
Military load troops
Electronic equipment none
Complement 23

Project history: Armed river transports.

Modernizations: None.

Naval service: No significant events.

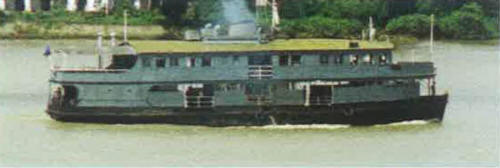

Shwepazun 1991
