PGM401 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
| PGM401 | Marinette Marine, USA | 8.1959 | in service (2019) | ||||
| PGM402 | Marinette Marine, USA | 8.1959 | in service (2019) | ||||
| PGM403 | Marinette Marine, USA | 9.1959 | in service (2019) | ||||
| PGM404 | Marinette Marine, USA | 9.1959 | in service (2019) | ||||
| PGM405 | Peterson Builders, Sturgeon Bay, USA | 6.1961 | in service (2019) | ||||
| PGM406 | Peterson Builders, Sturgeon Bay, USA | 6.1961 | in service (2019) |
|
Displacement standard, t |
100 |
|
Displacement full, t |
141 |
|
Length, m |
30.8 |
|
Breadth, m |
6.45 |
|
Draught, m |
2.30 |
|
No of shafts |
2 |
|
Machinery |
8 General Motors 6-71 diesels |
|
Power, h. p. |
2040 |
|
Max speed, kts |
17 |
|
Fuel, t |
diesel oil 16 |
| Endurance, nm(kts) | 1000(16) |
|
Armament |
1 x 1 - 40/60 Mk 3, 2 x 2 - 20/70 Mk 24, 2 x 1 - 12.7/90 |
|
Electronic equipment |
PGM401-404: EDO320 radar PGM405, 406: Raytheon 1500 radar |
| Complement | 17 |
Project history: USN PGM type, austere export service. USCG 95ft type.
Modernizations: None.
Naval service: No significant events.

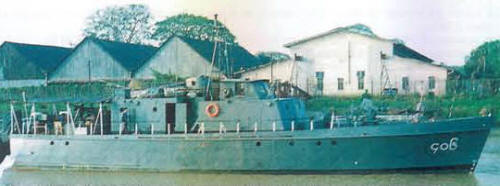

PGM406 1992
