Moattama
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
| မောအတ္တ္ [Moattama] | 1501 | Dae Sun, Pusan, South Korea | 7.2019 | 2020 | building (2019) |
|
Displacement standard, t |
7800 |
|
Displacement full, t |
11580 |
|
Length, m |
125.0 |
|
Breadth, m |
22.0 |
|
Draught, m |
4.90 mean hull |
|
No of shafts |
2 |
|
Machinery |
2 MAN-Burmeister & Wain 8L28/32A diesels |
|
Power, h. p. |
5250 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
8600(12) |
|
Armament |
1 x 1 - 40/70 Bofors 350AFD, 2 x 1 - 12.7/90, 3 helicopters (AS332L Super Puma) |
|
Military load |
2 LCM, 2 LCVP, 14 tanks, 645 troops or 2480 t cargo |
|
Electronic equipment |
2x nav. radars |
|
Complement |
126 |

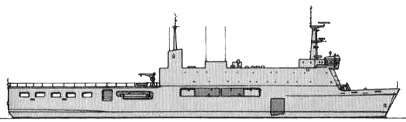

Project history: Landing platform dock of Makassar class.
Modernizations: None.
Naval service: No significant events.
