MYANMAR NAVY (MYANMAR)

COASTAL FORCES

INDAW gunboats (1944/1948)

Indaw 1955

Name No Yard No Builder Laid down Launched Comp. Fate
အင်းတော် [Indaw] (ex-LCG(M)1..)     UK   1944 1944 // 1948 stricken 1976
အင်းလေး [Inlay] (ex-LCG(M)1..)     UK   1944 1944 // 1948 stricken 1983
အင်း [Inma] (ex-LCG(M)1..)     UK   1944 1944 // 1948 stricken 1982
အင်းဝ [Inya] (ex-LCG(M)1..)     UK   1944 1944 // 1948 stricken 1982



Displacement standard, t

308

Displacement full, t

380

Length, m

47.1

Breadth, m

6.81

Draught, m

2.10 deep load 2.44 max

No of shafts

2

Machinery

2 Paxman Ricardo diesels

Power, h. p.

1000

Max speed, kts

11.75

Fuel, t

diesel oil 37 (max 52)

Endurance, nm(kts) 1730(11.7) (max 2060(11.7))
Armour, mm deck: 51, sides, turrets, CT: 25

Armament

2 x 1 - 88/27 Mk II, 2 x 1 - 40/39 Mk VIII

Electronic equipment type 974 radar
Complement 39

Project history: Former British LCG(M) type landing craft, gun, medium. Employed as gunboats

Modernizations: None.

Naval service: No significant events.

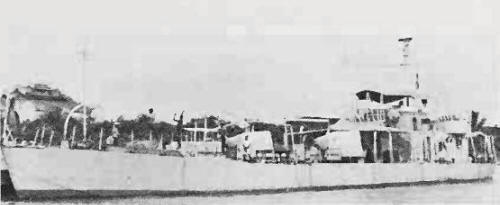

Inma
