556 2010
558 2010
559 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
| 551 | Yangon N Yd | 1996 | in service (2019) | ||||
| 552 | Yangon N Yd | 1996 | in service (2019) | ||||
| 553 | Yangon N Yd | 1996 | in service (2019) | ||||
| 554 | Yangon N Yd | 1996 | in service (2019) | ||||
| 555 | Yangon N Yd | 1996 | in service (2019) | ||||
| 556 | Yangon N Yd | 2004 | in service (2019) | ||||
| 557 | Yangon N Yd | 2004 | in service (2019) | ||||
| 558 | Yangon N Yd | 2004 | in service (2019) | ||||
| 559 | Yangon N Yd | 2004 | in service (2019) | ||||
| 560 | Yangon N Yd | 2004 | in service (2019) | ||||
| 561 | Yangon N Yd | 2008 | in service (2019) | ||||
| 562 | Yangon N Yd | 2008 | in service (2019) | ||||
| 563 | Yangon N Yd | 2012 | in service (2019) | ||||
| 564 | Yangon N Yd | 2012 | in service (2019) | ||||
| 565 | Yangon N Yd | 2012 | in service (2019) | ||||
| 566 | Yangon N Yd | 2012 | in service (2019) | ||||
| 567 | Yangon N Yd | 2013 | in service (2019) | ||||
| 568 | Yangon N Yd | 2013 | in service (2019) | ||||
| 569 | Yangon N Yd | 2013 | in service (2019) | ||||
| 570 | Yangon N Yd | 2013 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
215 |
|
Length, m |
45.0 |
|
Breadth, m |
7.00 |
|
Draught, m |
2.50 |
|
No of shafts |
2 |
|
Machinery |
2 MTU diesels |
|
Power, h. p. |
|
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
551-555: 1 x 2 - 37/63 type 76A, 2 x 2 - 25/82 type 61A 556-558: 2 x 2 YJ-83 SSM (4 C-802), 2 x 2 - 30/71 AK-230, 2 x 2 - 14.5/93 559, 560: 2 x 1 - 30/80 Medak CRN-91, 2 x 2 - 25/82 type 61A 561, 562: 2 x 1 YJ-83 SSM (2 C-802), 1 x 6 FN-6? SAM (6 FN-6)?, 1 x 2 - 30/71 AK-230, 2 x 2 - 14.5/93 563-566: 2 x 2 - 30/71 AK-230, 2 x 2 - 25/82 type 61A 567-570: 1 x 1 - 40/70 Bofors 564, 2 x 2 - 25/82 type 61A |
|
Electronic equipment |
551-555, 559, 560, 563-570: nav., type 341 radars 556-558, 561, 562: nav., 3Ts-25, MR-104 Rys' radars 561, 562: 2x nav., type 348, type 347 radars, 2x decoy RL |
|
Complement |
34 |
Project history: Gun and missile boats. Steel hull.
Modernizations: None.
Naval service: No significant events.

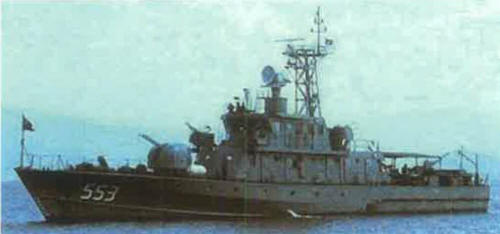

553 2001
556 2007
© Ivan Gogin, 2019
