| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
| 412 | Burma N Yd, Rangoon | 1983 | in service (2019) | ||||
| 413 | Burma N Yd, Rangoon | 1983 | in service (2019) | ||||
| 414 | Burma N Yd, Rangoon | 1984 | in service (2019) | ||||
| 415 | Burma N Yd, Rangoon | 1984 | in service (2019) | ||||
| ထိဟယရ္ဇရ္ ၁ [Thihayarzar I] | 331 | Burma N Yd, Rangoon | 6.1983 | Coast Guard, in service (2019) | |||
| ထိဟယရ္ဇရ္ ၂ [Thihayarzar II] | 332 | Burma N Yd, Rangoon | 6.1983 | Coast Guard, in service (2019) |
|
Displacement standard, t |
128 |
|
Displacement full, t |
168 |
|
Length, m |
33.5 |
|
Breadth, m |
6.70 |
|
Draught, m |
2.00 |
|
No of shafts |
2 |
|
Machinery |
2 Deutz SBA16 MB216 LLKR diesels |
|
Power, h. p. |
2720 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1400(14) |
|
Armament |
412-415: 2 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90 Thihayarzar I, II: small arms |
|
Electronic equipment |
nav. radar |
|
Complement |
17 |
Project history: Modification of USN PGM43 type.
Modernizations: None.
Naval service: No significant events.

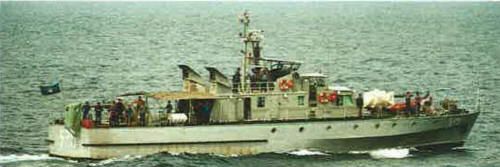

415 1993

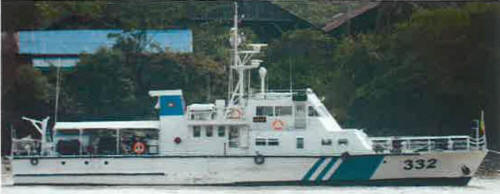

Thihayarzar II 2013
