Names |
112 - 117 |
|
Builders |
De Havilland Marine, Sydney, Australia: 112-117 |
|
Completed |
1979: 112, 113 1980: 114-117 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2019): 112-117 |
|
Displacement standard, t |
|
|
Displacement full, t |
27 |
|
Length, m |
16.0 |
|
Breadth, m |
5.00 |
|
Draught, m |
1.20 |
|
No of shafts |
2 |
|
Machinery |
2 General Motors 12V71 TI diesels |
|
Power, h. p. |
1120 |
|
Max speed, kts |
27 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
700(22) |
|
Armament |
1 x 1 - 20/70 Mk 10, 1 x 1 - 12.7/90 |
|
Electronic equipment |
Decca 110 radar |
|
Complement |
8 |
Project history: Australian 'Carpentaria' design. Aluminium construction. Ordered in 197 for fishery protection.
Modernizations: None.
Naval service: No significant events.

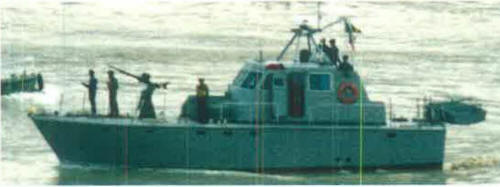

113 1991
© Ivan Gogin, 2019
