| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| (ex-Cimitarra) | EN do Mondego, Portugal | 1965 // 1975 | discarded late 1980s |
|
Displacement standard, t |
400 |
|
Displacement full, t |
635 |
|
Length, m |
57.0 |
|
Breadth, m |
11.8 |
|
Draught, m |
1.20 |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
1000 |
|
Max speed, kts |
10.3 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
2 x 1 - 40/60 Mk 3 |
| Military load | 270 t of cargo |
| Electronic equipment | Decca RM316 radar |
|
Complement |
20 |
Project history: Former Portuguese Alfange class LCT, design was based on British LCT(4) craft.
Modernizations: None.
Naval service: No significant events.

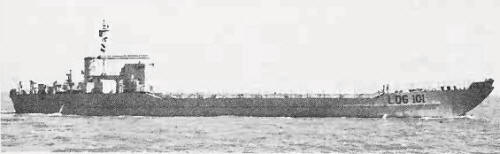

lead-ship Alfange 1968
© Ivan Gogin, 2020
