MOZAMBIQUE NAVY (MOZAMBIQUE)

COASTAL FORCES

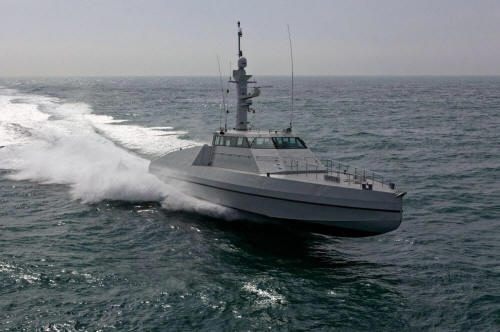

HSI32 patrol boats (2016)

Name No Yard No Builder Laid down Launched Comp Fate
i     CMN, Cherbourg, France   17.3.2015 1.2.2016 in service (2020)
ii     CMN, Cherbourg, France     1.2.2016 in service (2020)
iii     CMN, Cherbourg, France     1.2.2016 in service (2020)
iv     CMN, Cherbourg, France     2016 in service (2020)
v     CMN, Cherbourg, France     2016 in service (2020)
vi     CMN, Cherbourg, France     2016 in service (2020)



Displacement standard, t



Displacement full, t

132

Length, m

32.2

Breadth, m

7.00

Draught, m

1.40

No of shafts

3 waterjets

Machinery

3 MTU 16V2000 M93 diesels

Power, h. p.



Max speed, kts

45

Fuel, t

diesel oil

Endurance, nm(kts)

800(12)

Armament

1 x 1 - 20/90 Narwhal, 2 x 1 - 12.7/90

Electronic equipment

radar, e/o system

Complement

12

Project history: HSI32 design. Three were ordered in 2013 and three in 2015. Aluminium construction. 4.8m fast launch is carried aft.

Modernizations: None.

Naval service: No significant events.
