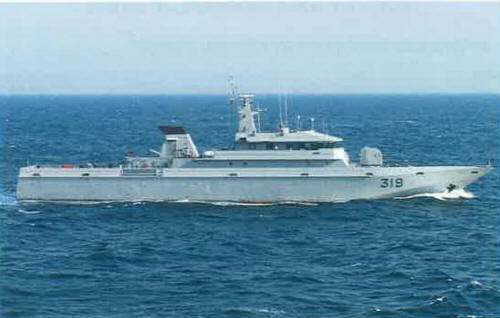

Raïs Britel 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| رايس برغش [Raïs Bargach] | 318 | Lorient Naval Industries, Lanester, France | 9.10.1995 | 14.12.1995 | in service (2019) | ||
| رئس برطل [Raïs Britel] | 319 | Lorient Naval Industries, Lanester, France | 19.3.1996 | 14.5.1996 | in service (2019) | ||
| رئس شرقاوي [Raïs Charkaoui] | 320 | Lorient Naval Industries, Lanester, France | 26.9.1996 | 15.12.1996 | in service (2019) | ||
| رئس مانعين [Raïs Maaninou] | 321 | Lorient Naval Industries, Lanester, France | 7.3.1997 | 21.5.1997 | in service (2019) | ||
| رئس المنستيري [Raïs Al Mounastiri] | 322 | Lorient Naval Industries, Lanester, France | 15.10.1997 | 18.12.1997 | in service (2019) |
|
Displacement standard, t |
520 |
|
Displacement full, t |
600 |
|
Length, m |
59.0 pp 64.0 oa |
|
Breadth, m |
11.4 |
|
Draught, m |
3.00 propellers |
|
No of shafts |
2 |
|
Machinery |
2 Wärtsilä-Nohab 16V25 diesels / 2 Leroy-Somer electric motors |
|
Power, h. p. |
10000 / 320 |
|
Max speed, kts |
25 / 8 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 4000(12) |
|
Armament |
318, 322: 2 x 1 - 20/90 F2 319-321: 1 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 20/90 F2 |
|
Electronic equipment |
2x Decca 2090 BrideMaster-E radars |
|
Complement |
46 |
Project history: French OPV64 design. Intended for fishery patrol duties. Have a stern recovery/deployment ramp for internally stowed 7.5m 35kts inspection RIB and firefighting water monitor. All received armament after delivery.
Modernizations: late 2010s, all: - 2 x 1 - 20/90; + 2 x 2 - 14.5/93
Naval service: No significant events.
Raïs Britel 2007
