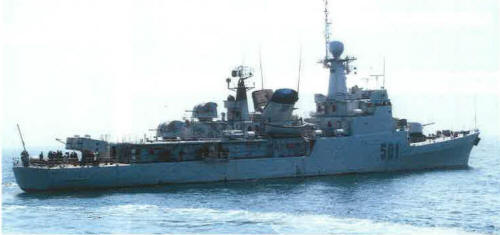

Lieutenant-Colonel Errahmani 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| لوطننة كولونيل رحمان [Lieutenant-Colonel Errahmani] | 501 | Bazán, El Ferrol, Spain | 20.3.1979 | 26.2.1982 | 28.3.1983 | in service (2019) |
|
Displacement standard, t |
1270 |
|
Displacement full, t |
1520 |
|
Length, m |
85.8 pp 88.9 oa |
|
Breadth, m |
10.4 |
|
Draught, m |
3.78 |
|
No of shafts |
2 |
|
Machinery |
4 Bazán-MTU 16V956 TB91 diesels |
|
Power, h. p. |
16000 |
|
Max speed, kts |
26 |
|
Fuel, t |
diesel oil 150 |
| Endurance, nm(kts) | 4000(18) |
|
Armament |
2 x 2 MM38 Exocet SSM (4 MM38) (fitted for but never installed), 1 x 8 Albatros SAM (24 Aspide), 1 x 1 - 76/62 OTO-Melara Compact, 2 x 1 - 40/70 Bofors 350, 2 x 3 - 324 Mk 32 Mod.5 TT (6 Mk 46 mod.2), 1 x 2 - 375 Bofors SR375 ASWRL |
|
Electronic equipment |
ZW-06, DA-05, WM-25/41, Decca nav. radars, DE1160B sonar, ELT715 ECM suite, 2x Dagaie decoy RL, SEWACO MR CCS |
|
Complement |
100 |
Project history: Spanish Descubierta class, ordered in 1977. MM38 Exocet missiles were never installed.
Modernizations: 1995: - 2 x 1 - 40/70; + 2 x 1 - 40/70 Breda-Bofors 564, Decca nav. (2nd) radar
1997: - DA-05 radar
1999: + DA-05 radar
Naval service: No significant events.
Lieutenant-Colonel Errahmani 2006
