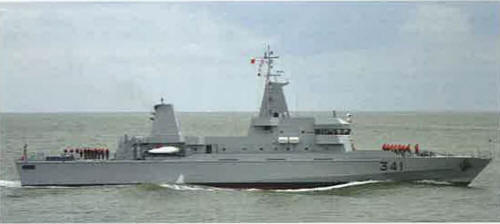

Bin Anzarane 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| بين انظرن [Bin Anzarane] | 341 | STX, Lanester, France // Raidco Marine, Lorient, France | 25.8.2010 | 23.6.2011 | in service (2019) |
|
Displacement standard, t |
650 |
|
Displacement full, t |
800 |
|
Length, m |
70.0 |
|
Breadth, m |
11.3 |
|
Draught, m |
3.22 |
|
No of shafts |
2 |
|
Machinery |
2 Wärtsilä 12V26A diesels |
|
Power, h. p. |
11100 |
|
Max speed, kts |
22 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 4500(12) |
|
Armament |
1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Breda-Bofors 564, 2 x 2 - 14.5/93, 2 x 1 - 12.7/90 |
|
Electronic equipment |
2x Sperry BridgeMaster II radars |
|
Complement |
64 |
Project history: French Raidco OPV70 design, ordered 2008. Steel hull and aluminium superstructure.
Modernizations: None.
Naval service: No significant events.
Bain Anzarane 2011 without armament
