Mohammed VI 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| محمد السادس [Mohammed VI] | 701 | DCNS, Lorient, France | 5/2010 | 14.9.2011 | 30.1.2014 | in service (2019) |
|
Displacement standard, t |
5200 |
|
Displacement full, t |
6000 |
|
Length, m |
129.0 pp 142.0 oa |
|
Breadth, m |
18.0 wl 20.0 oa |
|
Draught, m |
6.00 |
|
No of shafts |
2 |
|
Machinery |
CODLOG: 4 MTU 16V4000 diesel-generators, 2 Jeumont electric motors / 1 General Electric-Avio LM2500+G4 gas turbine |
|
Power, h. p. |
6000 / 43520 |
|
Max speed, kts |
27 |
|
Fuel, t |
diesel / gas turbine oil |
| Endurance, nm(kts) | 6000(15) |
|
Armament |
2 x 4 MM40 Exocet Block III SSM (8 MM40 Block III), 2 x 8 Sylver A43 SAM (VLS, 16 Aster 15), 1 x 1 - 76/62 OTO-Melara Compact SR, 4 x 1 - 12.7/90, 2 x 2 -324 B-515 TT (6 MU-90), 1 helicopter (Panther AS-565) |
|
Electronic equipment |
3x nav., MFR Herakles, NA-25XP radars, e/o system, MFS-4110, CAPTAS-4249 sonars, Sigen, FIGN ECM suites, 2x NGDS, 2x WASS decoy RL, SLAT torpedo countermeasures system, SETIS CCS |
|
Complement |
108 |
Project history: French-Italian FREMM design (Frégates Européennes Multí-Mission), differs from French ships by absence of Sylver A70 VLS for launch SCALP land-attack missiles.
Modernizations: None.
Naval service: No significant events.

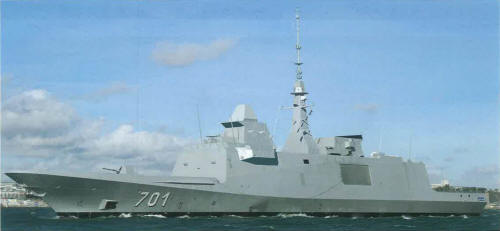

Mohammad VI 2014
