OKBA fast attack craft (gun) (1976-1977)
Okba 1980
Okba 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| عقبة [Okba] | 33, later- 302 | SFCN, Villeneuve-la-Garenne | 10.10.1975 | 16.12.1976 | in service (2019) | ||
| طريقي [Triki] | 34, later- 303 | SFCN, Villeneuve-la-Garenne | 2.2.1976 | 12.7.1977 | in service (2019) |
|
Displacement standard, t |
370 |
|
Displacement full, t |
440 |
|
Length, m |
54.0 pp 57.0 oa |
|
Breadth, m |
7.60 |
|
Draught, m |
2.50 |
|
No of shafts |
4 |
|
Machinery |
4 SACM AGO 195V16 SZSHR diesels |
|
Power, h. p. |
11040 |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 2500(16) |
|
Armament |
1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Breda-Bofors 564 |
|
Electronic equipment |
Vega, Decca 1226 radars, 2x Panda e/o systems |
| Complement | 53 |
Project history: French PR72 design.
Modernizations: 2003, Triki; 2004, Okba: two shafts were removed, diesels were replaced by 2 Wärtsilä UD33 V16 diesels (5520hp, 20kts); - Vega, Decca 1226 radars; + 2 x 1 - 12.7/90, 2x Furuno nav. radars
Naval service: No significant events.

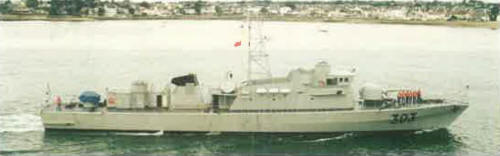

Triki 2003
