MOROCCAN NAVY (MOROCCO)

COASTAL FORCES

EL WACIL patrol boats (1975-1976)

Names

203 الوكيل [El Wacil]

204 الجيل [El Jail]

205 المقدم [El Mikdam]

206 الخفير [El Khafir]

207 الحريص [El Kharis]

208 إسهر [Essahir]

Builders

CMN, Cherbourg, France: 203-208

Completed

1975: 203, 204

1976: 205-208

Losses

none

Transfers

none

Discarding

in service (2019): 202-208



Displacement standard, t

81

Displacement full, t

89

Length, m

30.0 pp 32.3 oa

Breadth, m

5.35

Draught, m

1.70

No of shafts

2

Machinery

2 SACM MGO 12V BZSHR diesels

Power, h. p.

2700

Max speed, kts

28

Fuel, t

diesel oil

Endurance, nm(kts) 1200(15)

Armament

2 x 1 - 20/70 Mk 4
Electronic equipment Decca radar

Complement

17

Project history: French P32 design. Wooden hull sheathed in plastic.

Modernizations: None.

Naval service: No significant events.

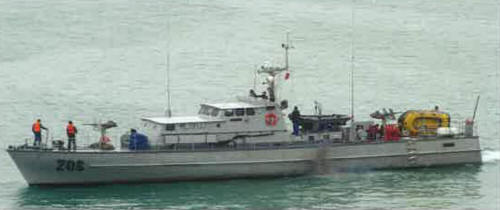

El Khafir 2013
