Commandant El Khattabi 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| كوماندنة الخطابي [Commandant El Khattabi] | 304 | Bazán, Cadiz, Spain | 21.7.1980 | 3.6.1981 | in service (2019) | ||
| كوماندنة بتوبة [Commandant Boutouba] | 305 | Bazán, Cadiz, Spain | 1981 | 11.12.1981 | in service (2019) | ||
| كوماندنة الهرط [Commandant El Harti] | 306 | Bazán, Cadiz, Spain | 1981 | 4.2.1982 | in service (2019) | ||
| كوماندنة زجاجه [Commandant Azougagh] | 307 | Bazán, Cadiz, Spain | 1981 | 2.8.1982 | in service (2019) |
|
Displacement standard, t |
303 |
|
Displacement full, t |
420 |
|
Length, m |
54.4 pp 57.4 oa |
|
Breadth, m |
7.60 |
|
Draught, m |
2.70 |
|
No of shafts |
2 |
|
Machinery |
2 Bazán-MTU 16V956 TB91 diesels |
|
Power, h. p. |
7780 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 3000(15) |
|
Armament |
2 x 2 MM38 Exocet SSM (4 MM38), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 20/90 GAM-B01 |
|
Electronic equipment |
ZW-06, WM-25, Decca nav., radars, Panda e/o system |
| Complement | 41 |
Project history: Modified Spanish Lazaga class.
Modernizations: 1998, Commandant Boutouba, Commandant Azougagh: - 1 x 1 - 76/62, WM-25 radar
1998, all: - 2 x 1 MM38 Exocet SSM (2 MM38 at all)
Naval service: No significant events.

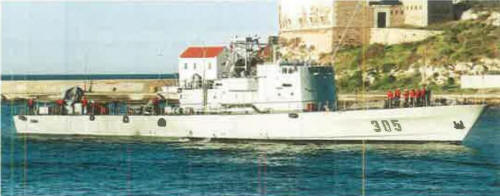

Commandant Boutouba 2008
