No130 patrol boats (2009-2010)
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 130 | Rodman, Vigo, Spain | 2009 | in service (2019) | ||||
| 131 | Rodman, Vigo, Spain | 2009-10 | in service (2019) | ||||
| 132 | Rodman, Vigo, Spain | 2009-10 | in service (2019) | ||||
| 133 | Rodman, Vigo, Spain | 2009-10 | in service (2019) | ||||
| 134 | Rodman, Vigo, Spain | 2009-10 | in service (2019) | ||||
| 135 | Rodman, Vigo, Spain | 2009-10 | in service (2019) | ||||
| 136 | Rodman, Vigo, Spain | 2009-10 | in service (2019) | ||||
| 137 | Rodman, Vigo, Spain | 2009-10 | in service (2019) | ||||
| 138 | Rodman, Vigo, Spain | 2009-10 | in service (2019) | ||||
| 139 | Rodman, Vigo, Spain | 2009-10 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
109 |
|
Length, m |
30.0 |
|
Breadth, m |
6.00 |
|
Draught, m |
1.75 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 Caterpillar 3412C diesels |
|
Power, h. p. |
2800 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
800(12) |
|
Armament |
3 x 1 - 12.7/90 |
|
Electronic equipment |
2x nav. radars |
|
Complement |
9 |
Project history: Rodman 130 design. GRP hull.
Modernizations: None.
Naval service: No significant events.

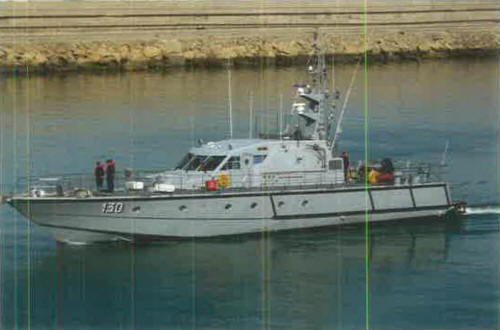

130 2009
