Nicholas Bravo 1914
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Nicholas Bravo | Odero, Sestri Ponente, Italy | 1903 | 1904 | stricken 1945 | |||
| Morales, 1917- Blanquet | Odero, Sestri Ponente, Italy | 1903 | 1904 | stricken 1924 |
|
Displacement normal, t |
1227 |
|
Displacement full, t |
1493 |
|
Length, m |
73.8 |
|
Breadth, m |
10.4 |
|
Draught, m |
2.97 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, Blechynden boilers |
|
Power, h. p. |
2565 |
|
Max speed, kts |
17 |
|
Fuel, t |
coal 200 |
|
Endurance, nm(kts) |
|
|
Armament |
2 x 1 - 102/40 Bethlehem , 6 x 1 - 57/40 Driggs-Schroeder, 1 - 356 TT (bow) |
|
Complement |
116 |
Project history: Steel-hulled gunboats with ram bow, two masts and funnels and raised forecastle and poop.
Modernizations: 1925-1926, Nicholas Bravo: boilers were converted to oil firing.
Naval service: No significant events.

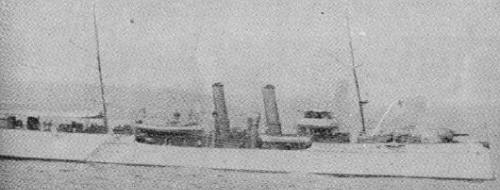

Nicholas Bravo
