Otomí 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Otomí (ex-Molala), 1993- Kukulkan, 2001- Otomí | A17, 1993- A52, 2001- RE01 | United Engineering, Alameda, USA | 26.7.1942 | 23.12.1942 | 29.9.1943 // 1.8.1978 | in service (2019) | |
| Yaqui (ex-Abnaki), 1993- Ehactl, 2001- Yaqui | A18, 1993- A53, 2001- RE02 | Charleston SB & DD, USA | 28.11.1942 | 22.4.1943 | 15.11.1943 // 30.9.1978 | in service (2019) | |
| Seri (ex-Cocopa), 1993- Tonatiuh, 2001- Seri | A19, 1993- A54, 2001- RE03 | Charleston SB & DD, USA | 23.5.1943 | 5.10.1943 | 25.3.1944 // 30.9.1978 | in service (2019) | |
| Cora (ex-Hitcchiti), 1993- Chac, 2001- Cora | A20, 1993- A55, 2001- RE04 | Charleston SB & DD, USA | 24.8.1943 | 29.1.1944 | 27.5.1944 // 30.9.1978 | in service (2019) |
|
Displacement standard, t |
1325 |
|
Displacement full, t |
1675 |
|
Length, m |
59.4 wl 62.5 oa |
|
Breadth, m |
11.7 |
|
Draught, m |
4.67 |
|
No of shafts |
1 |
|
Machinery |
4 Caterpillar D399 diesel-generators, 1 electric motor |
|
Power, h. p. |
3000 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil 304 |
|
Endurance, nm(kts) |
15000(8) |
|
Armament |
1 x 1 - 76/50 Mk 22, 2 x 1 - 20/70 Mk 10 |
|
Electronic equipment |
LN-66 radar |
|
Complement |
75 |
Project history: Former USN Abnaki class fleet tugs. Transferred unarmed but were rearmed before commission for use also as patrols.
Modernizations: 2000s, all: - 2 x 1 - 20/70; + 2 x 1 - 12.7/90
Naval service: No significant events.

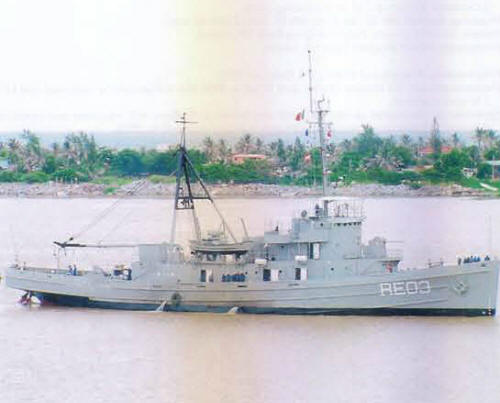

Seri 2003
