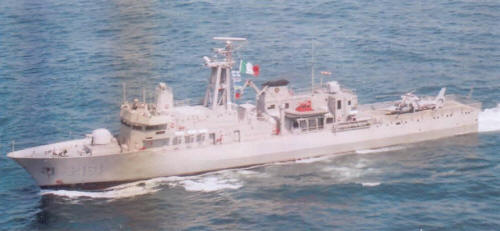

Oaxaca 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Oaxaca | P161 | Astimar, Salina Cruz | 17.12.2001 | 11.4.2003 | 17.2.2005 | in service (2019) | |
| Baja California | P162 | Astimar, Tampico | 13.12.2001 | 21.5.2003 | 4.2007 | in service (2019) | |
| Bicentenario de la Independencia | P163 | Astimar, Salina Cruz | 11.4.2003 | 23.7.2009 | 1.6.2010 | in service (2019) | |
| Centenario de la Revolución | P164 | Astimar, Tampico | 21.5.2003 | 23.11.2009 | 23.11.2010 | in service (2019) | |
| Chiapas | P165 | Astimar, Salina Cruz | 10.2014 | 18.11.2015 | 23.11.2016 | in service (2019) | |
| Hidalgo | P166 | Astimar, Tampico | 2015 | 9.8.2016 | 23.11.2017 | in service (2019) | |
| Jalisco | P167 | Astimar, Salina Cruz | 2016 | 2.7.2018 | 23.11.2018 | in service (2019) | |
| Tampico (ex-Estado de México) | P168 | Astimar, Tampico | 2016 | 2019 | 2019 | building (2019) |
|
Displacement standard, t |
1680 |
|
Displacement full, t |
1840 |
|
Length, m |
86.0 |
|
Breadth, m |
10.5 |
|
Draught, m |
3.57 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar 3916 V16 diesels |
|
Power, h. p. |
|
|
Max speed, kts |
19 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
P161-164: 1 x 1 - 76/62 OTO-Melara Compact SR, 1 x 1 - 25/80 Breda-Oerlikon KBB Compact, 2 x 1 - 12.7/90, 1 helicopter (Panther or Fennec) P165-168: 1 x 1 - 57/70 Bofors SAK-57 Mk 3, 1 x 1 - 25/80 Breda-Oerlikon KBB Compact, 1 helicopter (Panther or Fennec) |
|
Electronic equipment |
P161-164: Scanter 2001, 2x Sperry radars, NA-25 e/o system, SP-21K CCS P165-168: Scanter 6000, 2x Sperry radars, NA-25 e/o system, SP-21K CCS |
|
Complement |
59 + 39 passengers |
Project history: Enlarged Durango, Durango T-type. Carry a small 11m 50kts launch.
Modernizations: None.
Naval service: No significant events.
Oaxaca 2007
