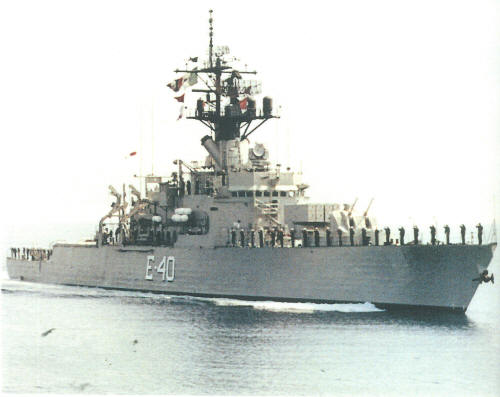

Nicolás Bravo 1993
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Nicolás Bravo (ex-McCloy) | E40, 2001- F201 | Avondale, Westwego, USA | 15.9.1951 | 9.6.1962 | 21.10.1963 // 19.11.1993 | stricken 4.2017 | |
| Hermenegildo Galeana (ex-Bronstein) | E42, 2001- F202 | Avondale, Westwego, USA | 16.5.1961 | 31.3.1962 | 16.6.1963 // 22.11.1993 | stricken 4.2017 |
|
Displacement standard, t |
2360 |
|
Displacement full, t |
2650 |
|
Length, m |
106.7 wl 113.2 oa |
|
Breadth, m |
12.3 |
|
Draught, m |
7.00 |
|
No of shafts |
1 |
|
Machinery |
1 set De Laval geared steam turbines, 2 Foster Wheeler boilers |
|
Power, h. p. |
20000 |
|
Max speed, kts |
24 |
|
Fuel, t |
oil 480 |
| Endurance, nm(kts) | 4000(15) |
|
Armament |
1 x 8 ASROC Mk 116 ASuR (8 RUR-5), 1 x 2 - 76/50 Mk 33, 2 x 3 - 324 Mk 32 TT (14), helicopter deck |
|
Electronic equipment |
Kelvin-Hughes 17/9, SPS-10F, SPS-40D, Mk 35 radars, SQS-26AXR sonar, WLR-1, WLR-3 ECM suites, 2x Mk 33 RBOC decoy RL, T Mk 6 Fanfare torpedo decoy |
|
Complement |
210 |
Project history: Former USN Bronstein class frigates.
Modernizations: 1994, Hermenegildo Galeana: + 1 x 1 - 57/70 Bofors SAK57 Mk 2, NA-18 e/o system
2002, Hermenegildo Galeana: - 1 x 1 - 57/70, NA-18 e/o system
Naval service: No significant events.
Nicolás Bravo 1999
