G20 1953
GC28 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| G20 | Euskalduna de Construccion, Bilbao, Spain | 1934 | 1935 | stricken 1954 | |||
| G21 | Euskalduna de Construccion, Bilbao, Spain | 1934 | 1935 | stricken 1954 | |||
| G22 | Euskalduna de Construccion, Bilbao, Spain | 1934 | 1935 | stricken 1956 | |||
| G23 | Euskalduna de Construccion, Bilbao, Spain | 1935 | 1936 | stricken 1954 | |||
| G24 | Euskalduna de Construccion, Bilbao, Spain | 1935 | 1936 | lost 1946 | |||
| G25 | Euskalduna de Construccion, Bilbao, Spain | 1935 | 1936 | stricken 1956 | |||
| G26 | Euskalduna de Construccion, Bilbao, Spain | 1935 | 1936 | stricken 1954 | |||
| G27 | Euskalduna de Construccion, Bilbao, Spain | 1935 | 1936 | stricken 1954 | |||
| G28 | Euskalduna de Construccion, Bilbao, Spain | 1935 | 1936 | stricken 1966 | |||
| G29 | Euskalduna de Construccion, Bilbao, Spain | 1935 | 1936 | stricken 1955 |
|
Displacement standard, t |
130 |
|
Displacement full, t |
180 |
|
Length, m |
45.0 pp 46.6 wl |
|
Breadth, m |
5.03 |
|
Draught, m |
1.59 |
|
No of shafts |
2 |
|
Machinery |
2 MAN diesels |
|
Power, h. p. |
3000 |
|
Max speed, kts |
26 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 2 - 25/60 Hotchkiss, 2 x 2 - 13.2/76 |
|
Complement |
21 |
Project history: A class from 10 fast small coastal
patrols was ordered in 1932. Project was developed in the Great Britain, but ships
were built in Spain. A class was shared between flotillas of Pacific ocean (ships with odd numbers) and Caribbean sea (even numbers).
Ships had forecastle and "torpedo boat"
streamlines.
After introduction of Mexico into WWII all ships passed modernization in the USA, however stability after that fallen to critical mark.
Modernizations: 1942, all: - 1 x 2 - 25/60, 2 x 2 - 13.2/76; + 3 x 1 - 20/70 Mk 4, 2 x 2 - 12.7/90, 2 DCT
Naval service: G24 was lost in 1946 as result of navigational accident.

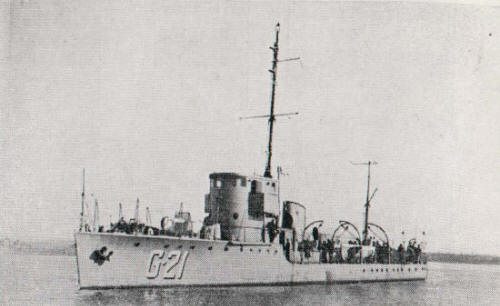

G21 1935
