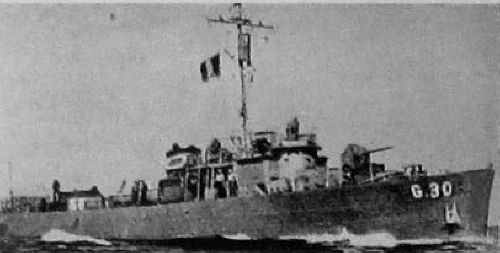

G30 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| G30 (ex-PC820) | G30 | Albina, Portland, USA | 5.1943 | 2.8.1943 | 9.1943 // 1952 | discarded 1966 | |
| G31 (ex-PC608) | G31 | Brown, Houston, USA | 1.1942 | 16.5.1942 | 8.1942 // 1952 | discarded 1964 | |
| G32 (ex-PC614) | G32 | Gibbs Gas Engine, Jacksonville, USA | 7.1942 | 23.12.1942 | 7.1943 // 1952 | discarded 1964 | |
| G33 (ex-PC813) | G33 | Commercial Iron Wks, Portland, USA | 12.1943 | 27.3.1944 | 5.1945 // 1952 | discarded 1966 | |
| G34 (ex-PC794) | G34 | Commercial Iron Wks, Portland, USA | 4.1943 | 29.5.1943 | 5.1944 // 1952 | discarded 1964 | |
| G35 (ex-PC824) | G35 | Leatham D. Smith SB, Sturgeon Bay, USA | 3.1944 | 10.5.1944 | 8.1944 // 1952 | discarded 1966 | |
| G36 (ex-PC1224) | G36 | Penn-Jersey, Camden, USA | 8.1943 | 9.7.1944 | 1.1945 // 1952 | discarded 1964 | |
| G37 (ex-PC819) | G37 | Albina, Portland, USA | 3.1943 | 19.5.1943 | 8.1943 // 1952 | discarded 1966 | |
| G38 (ex-PC1210) | G38 | Consolidated SB, New York, USA | 9.1943 | 30.10.1943 | 5.1944 // 1952 | discarded 1971 |
|
Displacement standard, t |
280 - 414 |
|
Displacement full, t |
330 - 463 |
|
Length, m |
51.8 wl 52.9 oa |
|
Breadth, m |
7.06 |
|
Draught, m |
2.36 - 3.30 full load |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
2880 |
|
Max speed, kts |
19 - 21 |
|
Fuel, t |
diesel oil 49 |
| Endurance, nm(kts) | 3000 (12) - 4800 (12) |
|
Armament |
1 x 1 - 76/50 Mk 21, 1 x 1 - 40/60 Mk 3, 5 x 1 - 20/70 Mk 10, 2 x 4 - 178 Mousetrap Mk 20 ASWRL, 2 DCT, 2 DCR |
|
Electronic equipment |
SF or SO or SU radar, QHA sonar |
| Complement | 59 - 65 |
Project history: Former USN PC class patrol craft.
Modernizations: None.
Naval service: No significant events.
G30 1953
