Zaragoza 1914
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Porfirio Díaz, 5.1911- Zaragoza | F C de la Méditerranée, Graville, France | 4.1890 | 9.4.1891 | 1892 | discarded 1924 |
|
Displacement normal, t |
1200 |
|
Displacement full, t |
|
|
Length, m |
68.0 |
|
Breadth, m |
9.30 |
|
Draught, m |
4.27 mean |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 2 cylindrical boilers |
|
Power, h. p. |
1300 |
|
Max speed, kts |
15 |
|
Fuel, t |
coal |
|
Endurance, nm(kts) |
|
|
Armament |
4 x 1 - 120/40 Canet, 2 x 1 - 57/40 Hotchkiss |
|
Complement |
270 |
Project history: Steel-hulled barque-rigged ship with ram bow, one funnel and raised forecastle and poop. 120mm guns were placed in sponsons at the breaks of forecastle and poop.
Modernizations: None.
Naval service: Ship was mainly used for training.

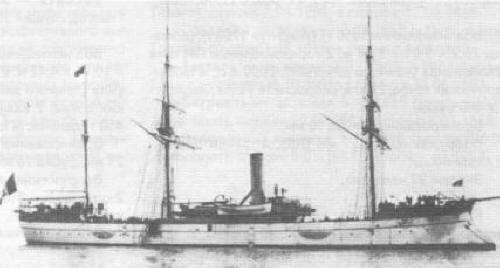

Porfirio Díaz 1894
