Huracán 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Huracán (ex-Aliyah) | P301, 2015- P401 | Israeli SY, Haifa, Israel | 10.7.1980 | 8.1980 // 7.2004 | in service (2019) | ||
| Tormenta (ex-Geoula) | P302 | Israeli SY, Haifa, Israel | 10.1980 | 31.12.1980 // 7.2004 | stricken 2015 |
|
Displacement standard, t |
375 |
|
Displacement full, t |
500 |
|
Length, m |
58.2 pp 61.7 oa |
|
Breadth, m |
7.09 wl 7.62 oa |
|
Draught, m |
2.40 hull 2.78 max |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V956 TB91 diesels |
|
Power, h. p. |
14000 |
|
Max speed, kts |
31 |
|
Fuel, t |
diesel oil 116 |
| Endurance, nm(kts) | 4000(17) |
|
Armament |
2 x 4 Harpoon SSM (8 RGM-84C), 4 x 1 Gabriel Mk 2 SSM (4 Gabriel Mk 2), 1 x 6 - 20/76 Phalanx Mk 15, 2 x 1 - 20/70 Mk 10, 4 x 1 - 12.7/90, 1 helicopter |
| Electronic equipment | THD1040 Neptune, RTN-10X radars, NS9003, NS9005 ECM suites, 1x45, 4x24, 4x1 decoy RL |
| Complement | 27 |
Project history: Former Israeli Sa'ar 4.5 class FACs. Transferred without Harpoon missiles, only with Gabriels.
Modernizations: None.
Naval service: No significant events.

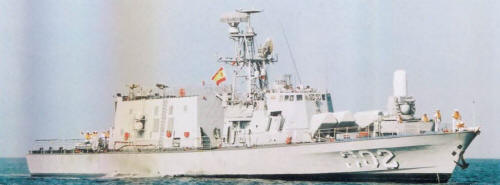

Tormenta 2004
© Ivan Gogin, 2018-19
