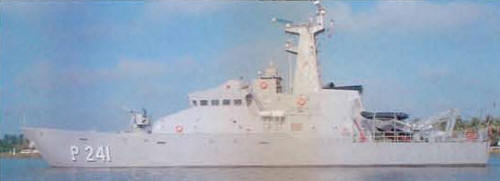

Demócrata 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Demócrata | C101, 2001- P241 | Astimar, Guaymas | 1997 | 16.10.1997 | 9.7.1998 | in service (2019) |
|
Displacement standard, t |
400 |
|
Displacement full, t |
450 |
|
Length, m |
52.5 |
|
Breadth, m |
9.00 |
|
Draught, m |
2.70 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 20V956 TB92 diesels |
|
Power, h. p. |
12240 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 2 - 40/60 Mk 1 |
| Electronic equipment | 2x Decca radars |
|
Complement |
37 |
Project history: Planned as replace for WWII-era Auk and Admirable classes. Carries a Boston Whaler Piranha-class armed inspection launch and two rescue RIBs.
Modernizations: None.
Naval service: No significant events.
Demócrata 2004
