MEXICAN NAVY (MEXICO)

COASTAL FORCES

CABO CORRIENTES patrol craft (1953/1990-1991)

Cabo Corrientes 2000

Name No Yard No Builder Laid down Launched Comp Fate
Cabo Corrientes (ex-Jalisco, ex-Cape Carter, ex-WPB95309) P42, 2001- P271   USCG Yard, Curtis Bay, USA     7.12.1953 // 16.3.1990 in service (2019)
Cabo Corzo (ex-Nayarit, ex-Vanguard, ex-Cape Hedge, ex-WPB95311) P43, 2001- P272   USCG Yard, Curtis Bay, USA     21.12.1953 // 21.4.1990 in service (2019)
Cabo Catoche (ex-Cape Hatteras, ex-WPB95305) P44, 2001- P273   USCG Yard, Curtis Bay, USA     28.7.1953 // 18.3.1991 in service (2019)



Displacement standard, t

87

Displacement full, t

105

Length, m

29.0

Breadth, m

5.80

Draught, m

1.83

No of shafts

2

Machinery

4 General Motors 16V 149TI diesels

Power, h. p.

2470

Max speed, kts

20

Fuel, t

diesel oil

Endurance, nm(kts)

1900(11.5)

Armament

1 x 1 - 20/70 Mk 10, 1 x 1 - 12.7/90

Electronic equipment SPS-64(v)1 radar

Complement

15



Project history: Former USCG 'Cape' class boats.

Modernizations: None.

Naval service: No significant events.

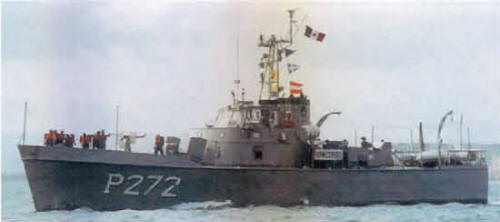

Cabo Corzo 2005
