Names |
F21 AM11, 1993- P90 Arrecife Alacran, 2001- PC301 Arrecife Alacran F23 AM13, 1993- P92 Arrecife Tanuijo, 2001- PC303 Arrecife Tanuijo F24 AM14, 1993- P93 Arrecife Cabezo, 2001- PC304 Arrecife Cabezo F25 AM15, 1993- P94 Arrecife Santiaguillo, 2001- PC305 Arecife Santiaguillo F26 AM16, 1993- P95 Arrecife Palancar, 2001- PC306 Arrecife Palancar F27 AM17, 1993- P96 Arrecife La Galleguilla, 2001- PC307 Arrecife La Galleguilla F28 AM18, 1993- P97 Arrecife La Blanquilla, 2001- PC308 Arrecife La Blanquilla F29 AM19, 1993- P98 Arrecife Anegada de Adentro, 2001- PC309 Arrecife Anegada de Adentro F30 AM20, 1993- P99 Arrecife Rizo, 2001- PC310 Arrecife Rizo F31 AM21, 1993- P100 Arrecife Pajaros, 2001- PC311 Arrecife Pajaros F32 AM22, 1993- P101 Arrecife De Enmedio, 2001- PC312 Arrecife De Enmedio F33 AM23, 1993- P102 Arrecife De Hornos, 2001- PC313 Arrecife De Hornos |
|
Builders |
Astilleros de Acapulco: F21-33 |
|
Commissioned |
1979-1983: F21-26 1984: F27-33 |
|
Losses |
None |
|
Transfers |
None |
|
Discarding |
2005-2006: PC301-313 |
|
Displacement standard, t |
|
|
Displacement full, t |
18 |
|
Length, m |
16.7 |
|
Breadth, m |
4.40 |
|
Draught, m |
2.40 |
|
No of shafts |
2 |
|
Machinery |
AM11-16: 2 Cummins UT diesels AM17-23: 2 General Motors 8V92 TI diesels |
|
Power, h. p. |
AM11-16: 800 AM17-23: 1140 |
|
Max speed, kts |
AM11-16: 20 AM17-23: 25 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 460(15) |
|
Armament |
1 x 1 - 12.7/90 |
|
Electronic equipment |
Raytheon 1900 radar |
| Complement | 6 |
Project history: Riverine patrol craft. GRP construction.
Modernizations: None
Naval service: No significant events.

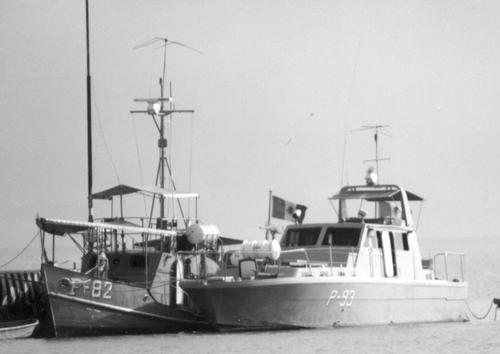

Arrecife Cabezo 2001
