Names |
F11 AM01 F12 AM02 F13 AM03 F14 AM04, 1993- P80 Lago de Pátzucaro, 2001- PC321 Lago de Pátzucaro F15 AM05, 1993- P81 Lago de Chapala, 2001- PC322 Lago de Chapala F16 AM06, 1993- P82 Lago de Texcoco F17 AM07, 1993- P83 Lago de Janitzio F18 AM08, 1993- P84 Lago de Cuitzeo, 2001- PC323 Lago de Cuitzeo F19 AM09 F20 AM10 |
|
Builders |
Astilleros de Tampico // Astilleros de Veracruz: F11-20 |
|
Commissioned |
1960-1962: F11-18 1981: F19, 20 |
|
Losses |
None |
|
Transfers |
None |
|
Discarding |
1986: F11-13, 19 1988: F20 2001: P82, 83 2004: PC323 2010: PC321, 322 |
|
Displacement standard, t |
|
|
Displacement full, t |
37 |
|
Length, m |
17.7 |
|
Breadth, m |
5.00 |
|
Draught, m |
|
|
No of shafts |
1 |
|
Machinery |
1 diesel |
|
Power, h. p. |
320 |
|
Max speed, kts |
6 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
small arms |
|
Electronic equipment |
none |
| Complement | 5 |
Project history: Riverine patrol craft with low freeboard and bulwarks surrounding hull.
Modernizations: 1990s, all survived: + nav. radar
Naval service: No significant events.

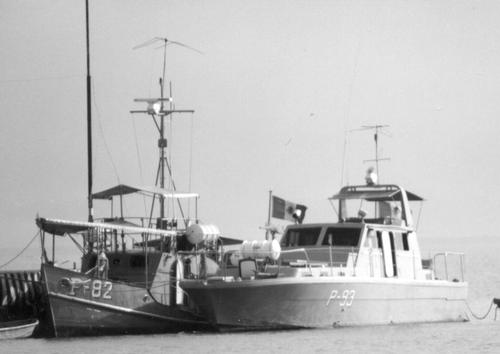

Lago de Texcoco 2001
