Names |
PI1301 Acuario PI1302 Águila PI1303 Aries PI1304 Auriga PI1305 Cáncer PI1306 Capricorno PI1307 Centauro PI1308 Gémini |
|
Builders |
Astimar, Coatzacualcos: PI1301-1308 |
|
Commissioned |
2004: PI1301-1308 |
|
Losses |
None |
|
Transfers |
None |
|
Discarding |
in service (2019): PI1301-1308 |
|
Displacement standard, t |
|
|
Displacement full, t |
19 |
|
Length, m |
15.9 |
|
Breadth, m |
3.80 |
|
Draught, m |
0.80 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 Caterpillar 3406E diesels |
|
Power, h. p. |
1600 |
|
Max speed, kts |
47 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) |
240(30) |
|
Armament |
1 x 1 - 12.7/90 |
| Electronic equipment | Bridgemaster E radar |
|
Complement |
4 |
Project history: Modified version of Stridsbåt 90H design. 1307 and 1308 have different silhouette.
Modernizations: None.
Naval service: No significant events.

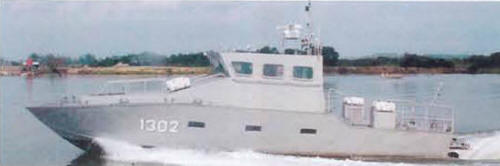

Águila 2005
