Tichitt 1970
|
Names |
PCR321 تشت [Tichitt] PCR322 در إل بربا [Dar El Barba] |
|
Builders |
CN de l'Esterel, Cannes, France: PCR321, 322 |
|
Completed |
4-9/1969: PCR321, 322 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1998: PCR321, 322 |
|
Displacement standard, t |
75 |
|
Displacement full, t |
80 |
|
Length, m |
32.0 |
|
Breadth, m |
5.75 |
|
Draught, m |
1.70 |
|
No of shafts |
2 |
|
Machinery |
2 MTU-Mercedes-Benz MB820Db/h diesels |
|
Power, h. p. |
2700 |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1500(15) |
|
Armament |
2 x 1 - 20/70 Mk 7 |
| Electronic equipment | radar |
|
Complement |
17 |
Project history: Patrol craft, wooden hull.
Modernizations: 1990s, both: - 2 x 1 - 20/70; + 1 x 1 - 12.7/90
Naval service: No significant events.

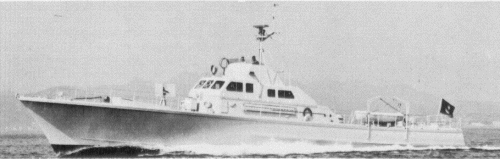

Dar el Barka 1980
