| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| لمم الحضرمي [Limam El Hadrami] | P601 | Huangpu, Guangzhou, China | 2001 | 20.4.2002 | in service (2020) | ||
| جورجل [Gorgol] | P631 | Huangpu, Guangzhou, China | 2016 | 25.5.2016 | in service (2020) | ||
| تمبدرا [Timbedra] | P632 | Huangpu, Guangzhou, China | 2016 | 25.5.2016 | in service (2020) |
|
Displacement standard, t |
|
|
Displacement full, t |
P601: 430 P631, 632: 480 |
|
Length, m |
60.2 wl 63.0 pp |
|
Breadth, m |
P601: 8.20 P631, 632: 9.00 |
|
Draught, m |
4.50 |
|
No of shafts |
P601: 3 P631, 632: 4 |
|
Machinery |
P601: 3 MTU 12V4000 M90 diesels P631, 632: 4 MTU 12V4000 M90 diesels |
|
Power, h. p. |
P601: 8210 P631, 632: 10944 |
|
Max speed, kts |
P601: 20 P631, 632: 27 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3000 |
|
Armament |
P601: 1 x 2 - 37/63 type 76A, 2 x 2 - 14.5/93 P631, 632: 1 x 1 - 37/70 type 90, 2 x 2 - 14.5/93 |
|
Electronic equipment |
nav., surf. search, type 347 radars |
|
Complement |
40 |
Project history: Chinese design.
Modernizations: None.
Naval service: No significant events.

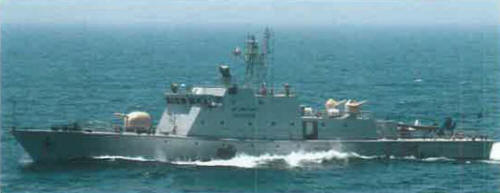

Limam El Hadrami 2009
Many thanks to Dmitriy Babichev for correcting the information on this page.
