Dix Juillet 1980
Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
ديكس جويلية [Dix Juillet] (ex-Rapière), 1988- إن نصر [En Nasr] | P411 | Auroux, Arcachon, France | 15.2.1981 | 3.6.1981 | 1.11.1981 // 14.5.1982 | stricken 2011 |
Displacement standard, t |
115 |
Displacement full, t |
148 |
Length, m |
38.5 wl 40.7 oa |
Breadth, m |
5.90 |
Draught, m |
1.55 |
No of shafts |
2 |
Machinery |
2 AGO 195V12 CZSHR diesels |
Power, h. p. |
5000 |
Max speed, kts |
26 |
Fuel, t |
diesel oil |
Endurance, nm(kts) |
1500(15) |
Armament |
1 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90 |
Electronic equipment |
Decca 1226 radar |
Complement |
20 |
Project history: French PATRA class patrol boat, built on speculation and acquired by French Navy in 1981 but sold to Mauritania next year.
Modernizations: 1994: diesels were replaced by 2 Wärtsilä UD33V12 diesels (5000hp, 26.3kts)
Naval service: No significant events.

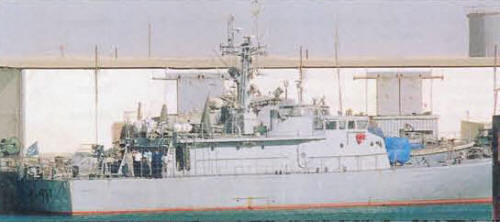

El Nasr 1998
