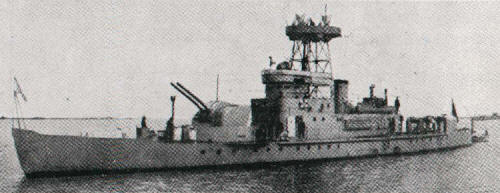

nearly sister-ship Ting Pien 1944
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 公司 [Shun Tien] | Harima, Japan // Kawasaki, Harbin | 1933 | 1.8.1934 | 9.1934 | captured by USSR 22.8.1945 (ΚΛ-55 [KL-55]) | ||
| 陽明 [Yang Min] | Harima, Japan // Kawasaki, Harbin | 1933 | 1.8.1934 | 9.1934 | captured by USSR 22.8.1945 (ΚΛ-57 [KL-57]) |
|
Displacement standard, t |
|
|
Displacement full, t |
270 |
|
Length, m |
55.8 |
|
Breadth, m |
8.84 |
|
Draught, m |
0.91 |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
680 |
|
Max speed, kts |
12.5 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 2 - 120/45 10-shiki, 1 x 1 - 120/45 10-shiki, 2 x 1 - 70/12 mortars, 3 x 2 - 13.2/76, 80 mines |
|
Complement |
70 |
Project history: Boats were laid down in Japan by Harima Zosensho, in taken apart kind transferred to Kawasaki in Harbin, where they were launched and completed. Japanese names were Junten and Yomin.
Modernizations: None.
Naval service: In 1944 both were disarmed, their artillery was landed for air defence of metal works in Anshan. 22.8.1945 both were captured by Soviet troops in Harbin and 24.8.1945 commissioned by Soviet Navy as KL-55 and KL-57.
Shun Tien 1936
