Ting Pien 1944
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 智言 [Chin Yen] | Harima, Japan // Kawasaki, Harbin | 1934 | 2.7.1935 | 1935 | captured by USSR 22.8.1945 (ΚΛ-56 [KL-56]) | ||
| 定邊 [Ting Pien] | Harima, Japan // Kawasaki, Harbin | 1934 | 2.7.1935 | 1935 | captured by USSR 22.8.1945 (ΚΛ-58 [KL-58]) |
|
Displacement standard, t |
|
|
Displacement full, t |
290 |
|
Length, m |
59.4 |
|
Breadth, m |
8.80 |
|
Draught, m |
0.91 |
|
No of shafts |
2 |
|
Machinery |
diesels |
|
Power, h. p. |
800 |
|
Max speed, kts |
13 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 2 - 120/45 10-shiki, 1 x 1 - 120/45 10-shiki, 2 x 1 - 70/12 mortars, 3 x 2 - 13.2/76, 80 mines |
|
Complement |
70 |
Project history: Slightly improved version of Shun Tien class. They were laid down in Japan on Harima Zosensho, in taken apart kind transferred to Kawasaki in Harbin, where they were launched and completed. Japanese names were Shinjin and Teiken.
Modernizations: None.
Naval service: In 1944 both gunboats were disarmed, their artillery was landed for of air defence of metal works in Anshan. 22.8.1945 they were captured by Soviet troops in Harbin and 24.8.1945 commissioned by Soviet Navy as KL-56 and KL-58.

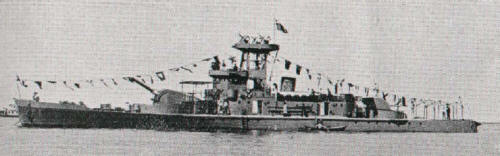

Ting Pien 1935
