P61 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| P61 | Fincantieri, Muggiano, Italy | 24.6.2005 | 4.11.2005 | in service (2020) |
|
Displacement standard, t |
390 |
|
Displacement full, t |
450 |
|
Length, m |
47.2 pp 53.4 oa |
|
Breadth, m |
8.10 |
|
Draught, m |
2.20 |
|
No of shafts |
2 |
|
Machinery |
2 Isotta-Fraschini V1716T2MSD diesels |
|
Power, h. p. |
6335 |
|
Max speed, kts |
23 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2100(16) |
|
Armament |
1 x 1 - 25/80 KBA, 2 x 1 - 7.6/90, helicopter deck |
|
Electronic equipment |
2x GEM radars |
|
Complement |
25 |
Project history: Modified Ubaldo Diciotti patrol ship of Italian Guardia Costiera, ordered in 2004. Carries a 7m fast launch on ramp aft.
Modernizations: 2017: + 2x Janus naval e/o systems
Naval service: No significant events.

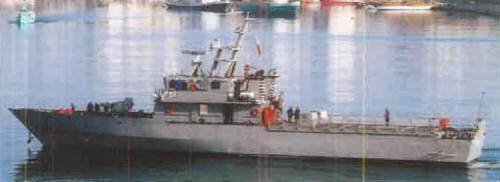

P61 2009
