Boltenhagen 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| (ex-GS09, ex-Boltenhagen) | P29 | 241 | Peenewerft, Wolgast, East Germany | 8.10.1969 | 22.5.1970 | 19.9.1970 // 24.7.1997 | discarded 2004-2005 |
| (ex-GS01, ex-Ückermünde) | P30 | 227 | Peenewerft, Wolgast, East Germany | 20.8.1968 | 27.2.1969 | 1.7.1969 // 7.1992 | discarded 2004-2005 |
| (ex-GS05, ex-Pasewalk) | P31 | 231 | Peenewerft, Wolgast, East Germany | 12.12.1968 | 18.6.1969 | 18.10.1969 // 7.1992 | discarded 2004-2005 |
|
Displacement standard, t |
339 |
|
Displacement full, t |
361 |
|
Length, m |
52.0 |
|
Breadth, m |
7.10 |
|
Draught, m |
2.40 |
|
No of shafts |
2 |
|
Machinery |
2 40DM diesels |
|
Power, h. p. |
5000 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2000(15) |
|
Armament |
2 x 1 - 12.7/79 |
|
Electronic equipment |
Furuno FR-8031, Decca 1229 radars |
|
Complement |
20 |
Project history: Former Volksmarine's minesweepers, incorporated to German Border Guard after unification of Germany but were not used operationally.
Modernizations: 1999, all: - 2 x 1 - 12.7/79; + 1 x 4 - 14.5/93 ZPU-4
Naval service: No significant events.

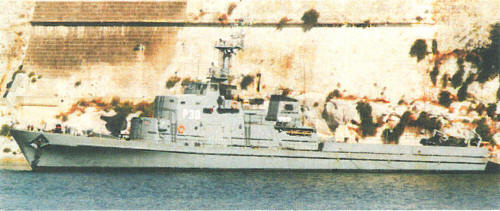

P30 2001
