Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
(ex-أل ركب [Al Rakib]) | C28 | Thornycroft, Woolston, UK | 15.11.1966 | 5.1967 // 1978 | discarded 1993 | ||
(ex-أكرما [Akrama]) | C29 | Thornycroft, Woolston, UK | 15.11.1966 | early 1969 // 1978 | stricken 1989 | ||
(ex-فروا [Farwa]) | C30 | Thornycroft, Woolston, UK | 4.5.1967 | 5.1967 // 1978 | sunk 1981 |
Displacement standard, t |
|
Displacement full, t |
100 |
Length, m |
30.5 |
Breadth, m |
6.40 |
Draught, m |
1.70 |
No of shafts |
3 |
Machinery |
3 Rolls-Royce DV8TLM diesels |
Power, h. p. |
1740 |
Max speed, kts |
18 |
Fuel, t |
diesel oil |
Endurance, nm(kts) | 1800(14) |
Armament |
1 x 1 - 20/70 Mk 7 |
Electronic equipment | radar |
Complement | 18 |
Project history: Former Libyan customs boats.
Modernizations: None.
Naval service: C30 was lost in 1981.

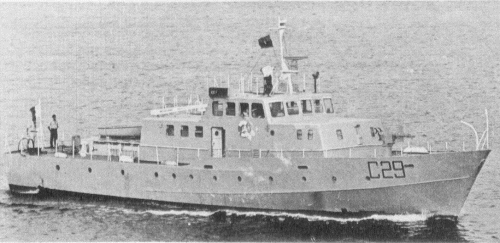

C29 1980
