| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Shaheed Ali | 322, 2007- P322 | Colombo DYd, Sri Lanka | 5.2005 | 12.2006 | 21.4.2007 | in service (2020) |
|
Displacement standard, t |
|
|
Displacement full, t |
300 |
|
Length, m |
35.3 |
|
Breadth, m |
7.00 |
|
Draught, m |
1.35 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 Cummins KTA50M2 diesels |
|
Power, h. p. |
3630 |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
2 x 1 - 7.6/90 |
|
Electronic equipment |
JMA 2344, JMA 5320/7 radars |
|
Complement |
15 |
Project history: Large patrol craft.
Modernizations: None.
Naval service: No significant events.

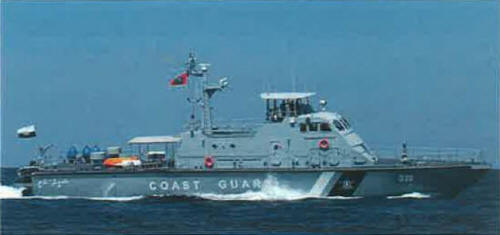

Shaheed Ali 2013
