Mahamiru 1990
|
Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
|
Mahamiru |
11 |
Intermarine, Sarzana, Italy |
30.3.1981 |
24.2.1983 |
11.12.1985 |
in service (2019) |
|
|
Jerai |
12 |
Intermarine, Sarzana, Italy |
19.9.1981 |
8.12.1983 |
11.12.1985 |
in service (2019) |
|
|
Ledang |
13 |
Intermarine, Sarzana, Italy |
7.4.1982 |
17.7.1983 |
11.12.1985 |
in service (2019) |
|
|
Kinabalu |
14 |
Intermarine, Sarzana, Italy |
28.10.1982 |
19.3.1983 |
11.12.1985 |
in service (2019) |
|
Displacement standard, t |
570 |
|
Displacement full, t |
610 |
|
Length, m |
46.5 pp 51.0 oa |
|
Breadth, m |
9.56 |
|
Draught, m |
2.75 |
|
No of shafts |
2 / retractable auxiliary propellers |
|
Machinery |
2 MTU 16V396 TC82 diesels / 2 electric motors |
|
Power, h. p. |
2600 / 240 |
|
Max speed, kts |
16 / 7 |
|
Fuel, t |
diesel oil 46 |
| Endurance, nm(kts) | 2000(12) |
|
Armament |
1 x 1 - 40/70 Bofors 315, 2x PAP-104 USV, Oropesa Mk 4 mechanical minesweeping gear, decompression chamber |
|
Electronic equipment |
Decca 1226 radar, TSM 2022 Mk 2 sonar |
|
Complement |
42 |
Project history: Modified Lerici type GRP minehunters, ordered in 1981. Differ from Italian sisters in propulsion and electronics.
Modernizations: 2007-08, Mahamiru, Ledang; 2015-16, Jerai, Kinabalu: - Decca 1226 radar, TSM 2022 Mk 2 sonar; + type 1007 radar, TSM 2022 Mk 3 sonar
Naval service: No significant events.

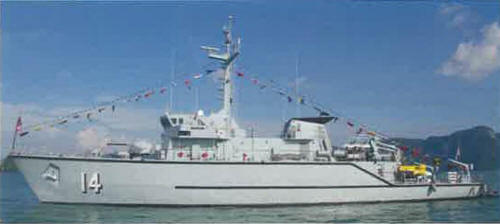

Kinabalu 2011
© Ivan Gogin, 2019
