Mahamiru 1970
|
Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
|
Mahamiru (ex-Darlaston) |
M1127 |
Cook, Welton & Gemmell, Beverley, UK |
30.9.1952 |
25.9.1953 |
12.10.1954 // 5.1960 |
stricken 1980 |
|
|
Kinabalu (ex-Essington) |
M1134 |
Camper & Nicholson, Gosport, UK |
1954 |
9/1954 |
1955 // 1964 |
stricken 1980 |
|
|
Ledang (ex-Hexton) |
M1143 |
Cook, Welton & Gemmell, Beverley, UK |
1953 |
19.6.1954 |
1955 // 10.1963 |
stricken 1980 |
|
|
Tahan (ex-Lullington) |
M1163 |
Harland & Wolff, Belfast, UK |
1955 |
31.8.1955 |
1956 // 4.1966 |
stricken 1982 |
|
|
Jerai (ex-Dilston) |
M1168 |
Cook, Welton & Gemmell, Beverley, UK |
1953 |
15.11.1954 |
1955 // 1964 |
stricken 1977 |
|
|
Brinchang (ex-Thankerton) |
M1172 |
Camper & Nicholson, Gosport, UK |
1955 |
4.9.1956 |
1957 // 5.1966 |
stricken 1982 |
|
Displacement standard, t |
360 |
|
Displacement full, t |
425 |
|
Length, m |
42.7 pp 46.3 oa |
|
Breadth, m |
8.80 |
|
Draught, m |
2.50 max |
|
No of shafts |
2 |
|
Machinery |
M1127: 2 Mirrlees diesels others: 2 Napier Deltic diesels |
|
Power, h. p. |
M1127: 2500 others: 3000 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil 45 |
| Endurance, nm(kts) | 3000(8) |
|
Armament |
1 x 1 - 40/60 Mk 7, 1 x 2 - 20/70 Mk 9, LL mechanical/magnetic/acoustic minesweeping gear |
|
Electronic equipment |
type 978 radar |
|
Complement |
29 |
Project history: Former RN 'Ton' class coastal minesweepers.
Modernizations: None.
Naval service: No significant events.

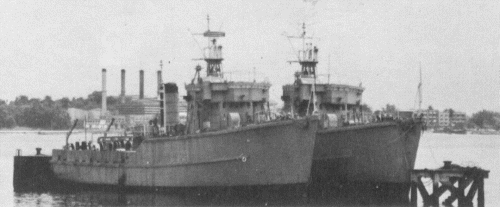

Kinabalu 1980
