Names |
001-002 Tempur 001-002 101-102 Tempur 101-102 201-205 Tempur 201-205 211-217 Tempur 211-217 301 Tempur 301 |
|
Builders |
Dockstavarvet, Docksta, Sweden: 001, 002, 101, 102, 201-205, 211-217, 301 |
|
Completed |
1998-1999: 201-205 2000-2002: 001, 002, 101, 102, 211-217, 301 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2019): 001, 002, 101, 102, 201-205, 211-217, 301 |
|
Displacement standard, t |
13 |
|
Displacement full, t |
20 |
|
Length, m |
13.0 pp 15.9 oa |
|
Breadth, m |
3.80 |
|
Draught, m |
1.00 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 Caterpillar 3406E diesels |
|
Power, h. p. |
1600 |
|
Max speed, kts |
45 |
|
Fuel, t |
diesel oil 2.5 |
| Endurance, nm(kts) | 240(30) |
|
Armament |
1 x 1 - 7.6/90 |
| Military load | 20 troops or 2.8 t of cargo |
| Electronic equipment | Furuno 1834 radar |
|
Complement |
3 |
Project history: Swedish CB90H personnel landing craft. Used primarily as patrol and logistic support craft operating from Borneo.
Modernizations: None.
Naval service: No significant events.

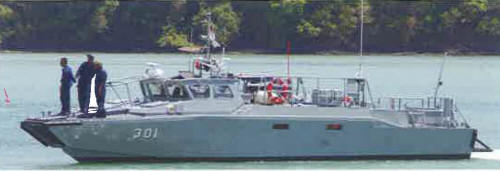

Tempur 301 2013
