Musytari 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Musytari, 6.2006- Langkawi | 160, 6.2006- 7501 | Korea Tacoma, Pusan, South Korea | 20.7.1984 | 19.12.1985 | Maritime Security Agency 6.2006, in service (2019) | ||
| Marikh, 6.2006- Banggi | 161, 6.2006- 7502 | Malaysian SB, Johore | 21.1.1985 | 9.4.1987 | Maritime Security Agency 6.2006, in service (2019) |
|
Displacement standard, t |
1000 |
|
Displacement full, t |
1300 |
|
Length, m |
75.0 |
|
Breadth, m |
10.8 |
|
Draught, m |
3.70 |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick diesels |
|
Power, h. p. |
12770 |
|
Max speed, kts |
22 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
5000(15) |
|
Armament |
1 x 1 - 100/55 Creusot-Loire Compact, 1 x 2 - 30/75 Emerlec EX-30, helicopter deck |
|
Electronic equipment |
Decca TM1226, DA-05, 9GR600, 9LV230 radars, 9LV230 e/o system, Cutlass ECM suite |
|
Complement |
76 |
Project history: Ordered in 1983 for patrol duties. Have large helicopter deck but no hangar.
Modernizations: 1994, both: - 1 x 1 - 100/55; + 1 x 1 - 100/55 Creusot-Loire Compact Mk 2
late 2000s, both: - 1 x 1 - 100/55, Decca TM1226 radar; + 1 x 1 - 57/70 SAK-57 Mk 1, type 1007 radar
Naval service: No significant events.

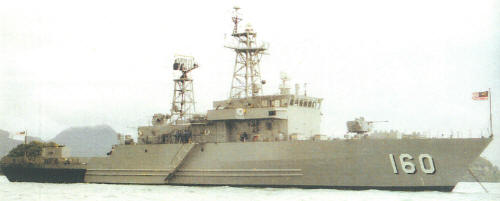

Musytari 2003

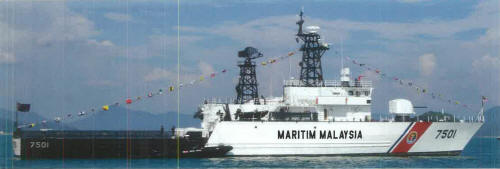

Langkawi 2011
